Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Name: Flanged Inlet Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing
Brand: Lehler
Price: 1 USD

Buy cheap Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing product

Brand Name : Lehler

Model Number : LFW-D219

Place of Origin : QINGDAO

Slot Opening : 150 Microns

Installation Type : Vertical/Horizontal

Inlet/Outlet Connection : Flanged/Threaded

Brush : Metal Brush

Inlet : DN150

New Application : Sizing For Paper Mill

Surface Finish : Mirror Polish

Power Box : EX-proof

Contact Now

Flanged Inlet/Outlet Connection Automatic Self-cleaning external scraping filter housing for Paper Mill Sizing

Product Description

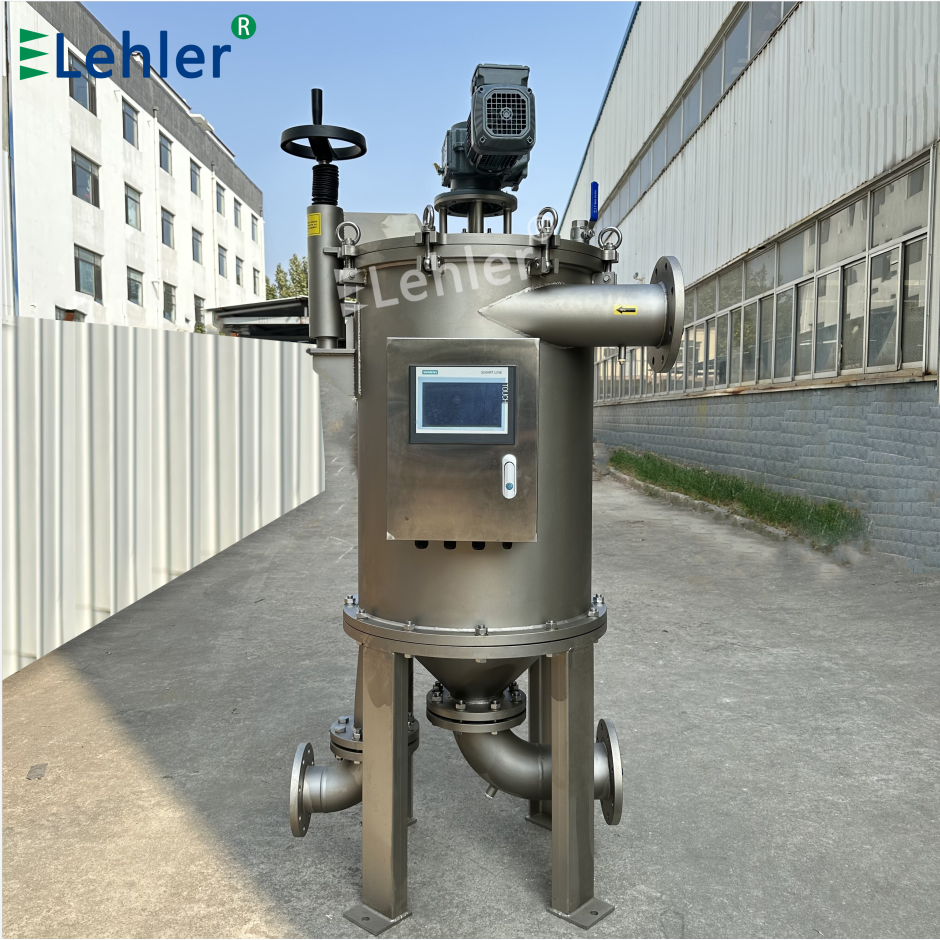

External Scraping Self-cleaning Filter

Lehler external scraping self-cleaning filter (LFW series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated or manual operation.

***Lehler External Scraping Self-cleaning Filter is suitable for High Viscosity and High Temperature liquids. And is capable of the filtration for liquids of viscosity up to 800000cps.***

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Working principle

Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages

No disposable consumables:Save filter media cost and environment cost

Stainless steel structure:Variously materials, corrosion and rust prevention

High-precision slot opening: Min. Slot 20 microns.Suitable for high viscosity and high temperature liquids

High automation degree:Which can work on-line continuously,no manual cleaning frequently

Quality Control&Delivery

Productive Process

Specification
Product Model	Equipment Diameter	Equipment Height	Thickness	Filter Area	Slot
LFW-D219	250mm	700mm	3mm	0.2	Min. 0.02mm(20um)
LFW-D245	300mm	1000mm	4mm	0.3
LFW-D412	450mm	1100mm	6mm	0.7
LFW-D470	500mm	1300mm	6mm	1.5
LFW-D550	600mm	1500mm	6mm	2.0
