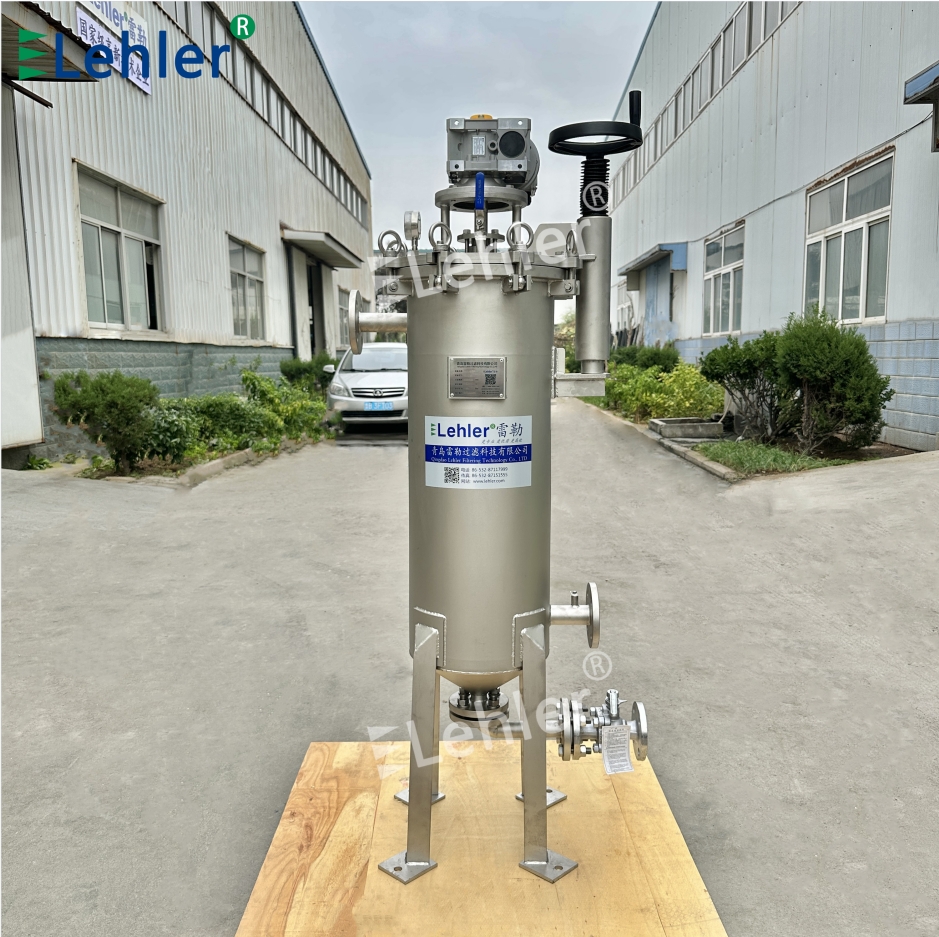

Metal Brush Automatic Self Cleaning Filters With EX Proof Power Box

Name: Metal Brush Automatic Self Cleaning Filters With EX Proof Power Box
Brand: Lehler
Price: 1 USD

Buy cheap Metal Brush Automatic Self Cleaning Filters With EX Proof Power Box product

Brand Name : Lehler

Model Number : LFN-D400

Place of Origin : QINGDAO

Delivery Time : 35

Packaging Details : polywood

Brush : Metal Brush

Service : OEM

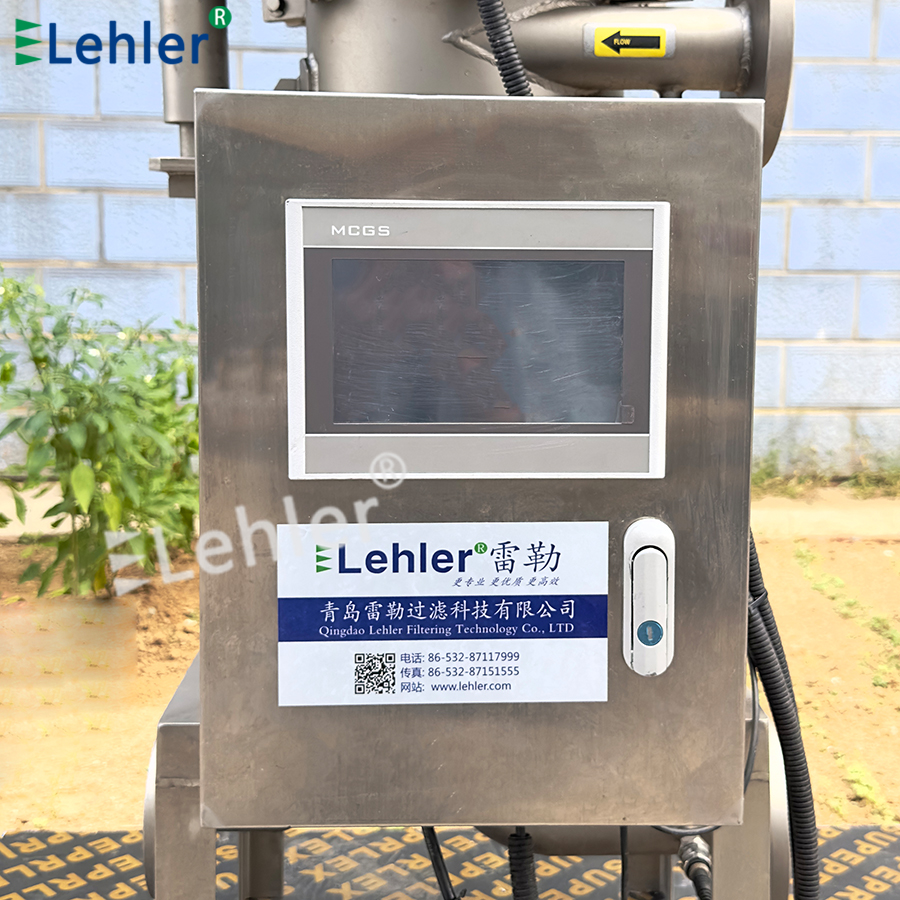

Power Box : EX-proof

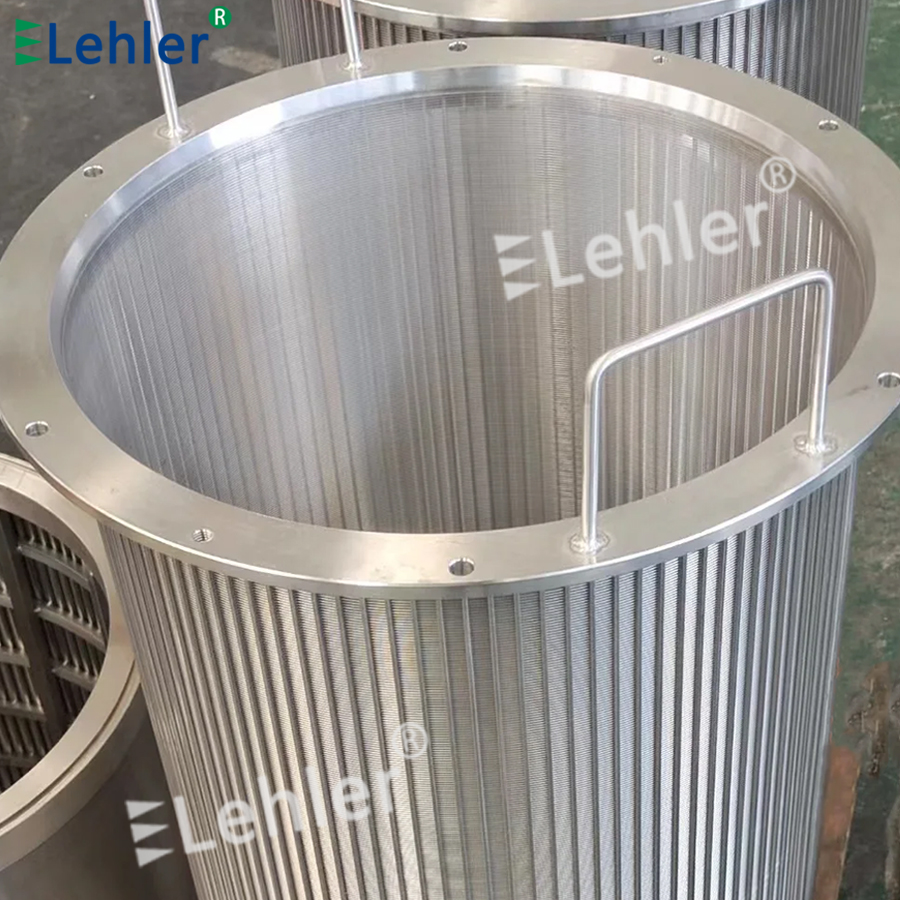

Element : Wedge Wire Element

Slot Opening : 150 Microns

Inlet/Outlet Connection : Flanged/Threaded

New Application : Sizing For Paper Mill

Surface Finish : Mirror Polish

Contact Now

Flanged Inlet/Outlet Connection Automatic Self Cleaning Filters with EX-proof Power Box

Product Description

Internal Scraping Self-cleaning Filter

Lehler internal scraping self-cleaning filter (LFN series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for automated or manual operation.

Metal Brush Automatic Self Cleaning Filters With EX Proof Power Box

Working principle

Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages

No disposable consumables:Save filter media cost and environment cost

Stainless steel structure:Variously materials, corrosion and rust prevention

High-precision slot opening: Min. Slot 20 microns

High automation degree:Which can work on-line continuously,no manual cleaning frequently

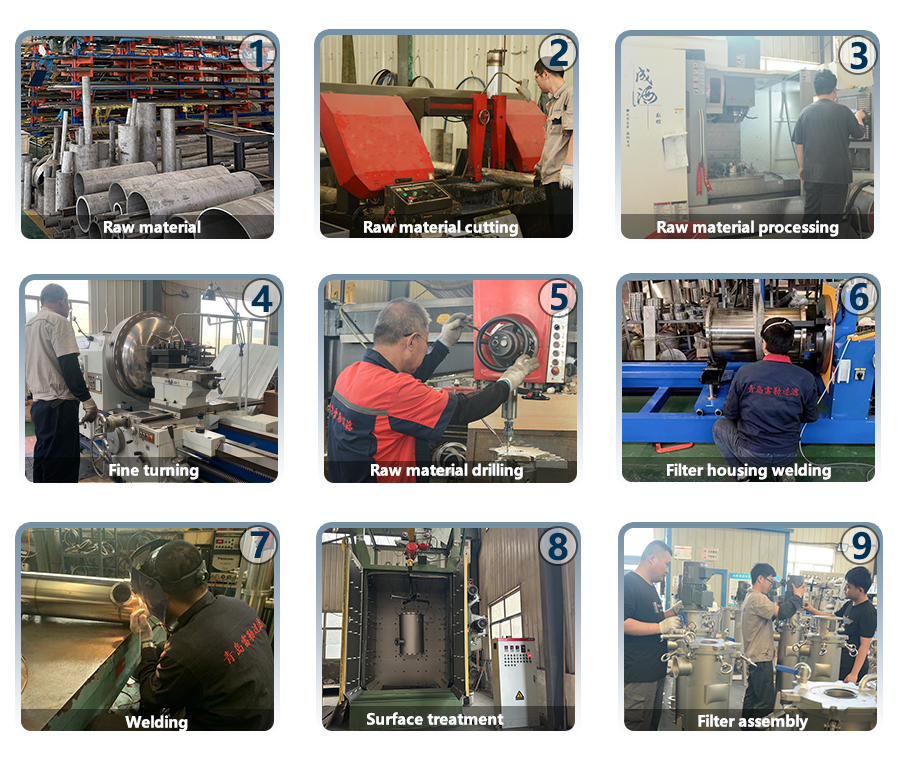

Productive Process

Specification
Product Model	Equipment Diameter	Equipment Height	Thickness	Filter Area	Slot
LFN-D159	200mm	500mm	3mm	0.1	Min. 0.02mm(20um)
LFN-D219	250mm	1000mm	3mm	0.2
LFN-D273	300mm	1450mm	4mm	0.5
LFN-D325	350mm	1600mm	4mm	0.6
LFN-D400	450mm	1700mm	6mm	0.7
LFN-D450	500mm	1750mm	6mm	0.9
LFN-D550	600mm	1850mm	6mm	2.0
LFN-D800	850mm	2000mm	6mm	2.5

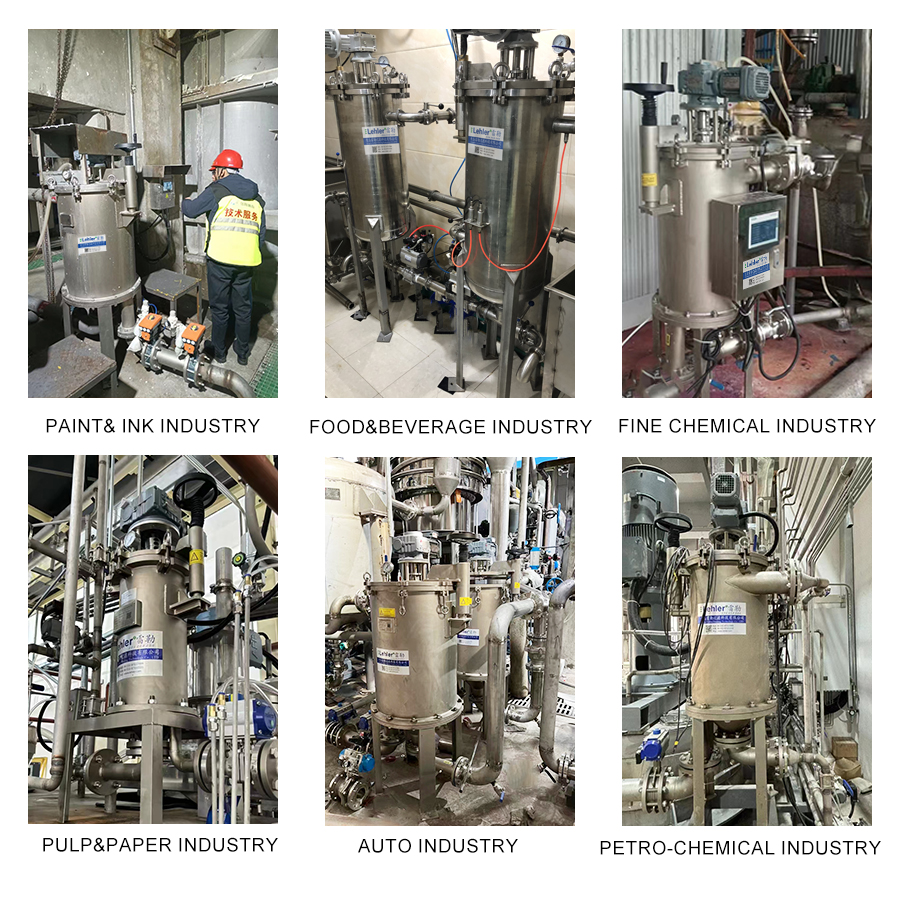

Application

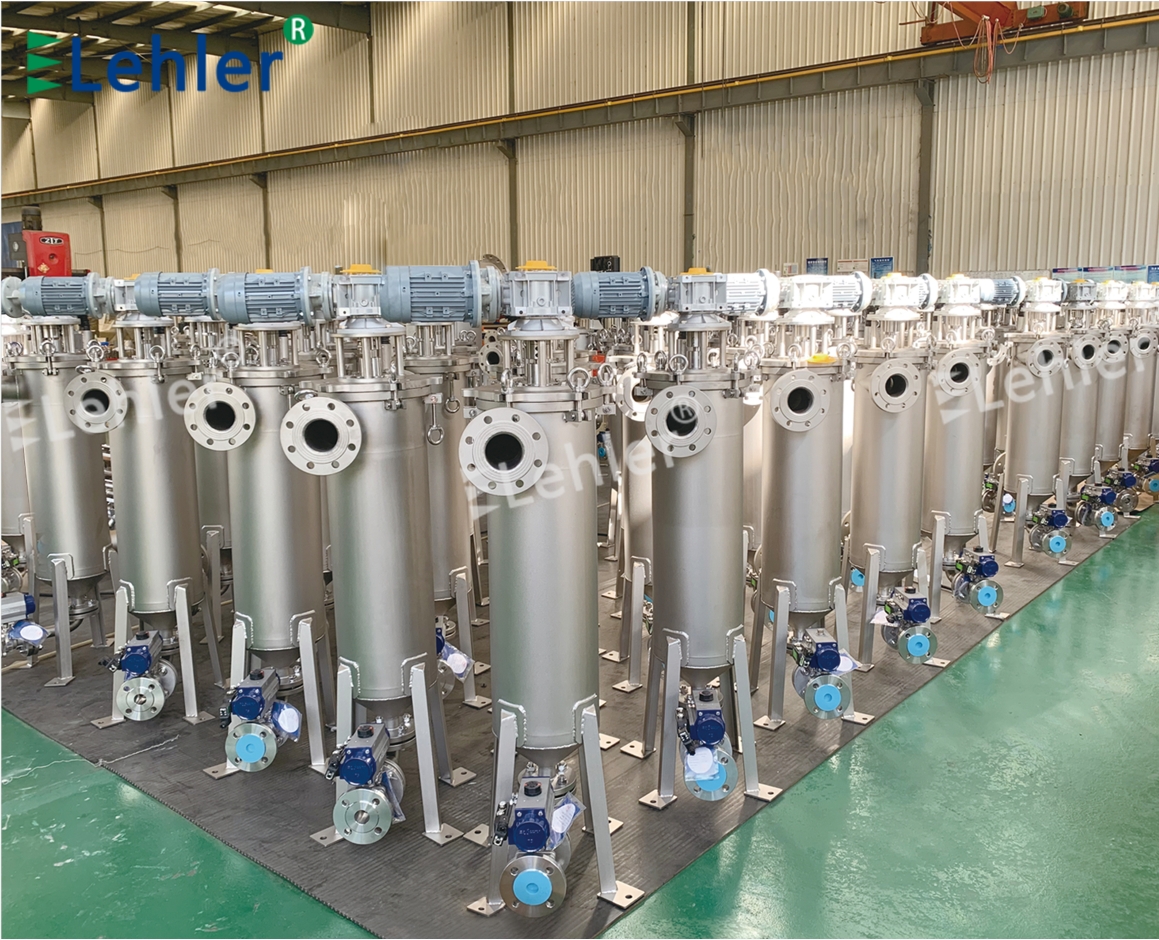

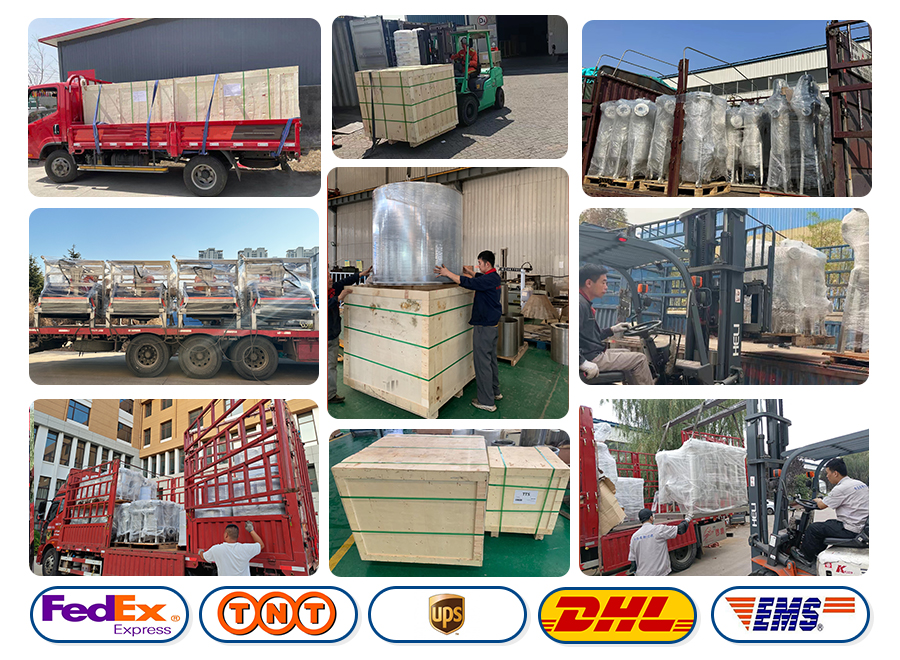

Quality Control & Delivery

Plywood Case for Exporting Package

Exhibition

Certifications
