EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification

Name: EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification
Brand: Lehler
Price: 1 USD

Buy cheap EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification product

Brand Name : Lehler

Model Number : LFF-D1200

Place of Origin : QINGDAO

Inlet/Outlet Connection : Flanged/Threaded

Power Box : EX-proof

Slot Opening : 150 Microns

Installation Type : Vertical/Horizontal

Brush : Metal Brush

Inlet Size : 1 1/2

Gasket : FPM

Inlet : DN150

Contact Now

EX-proof Self-cleaning Automatic Back washing Filters for chemical industry oil beverage liquid purification

Products Description

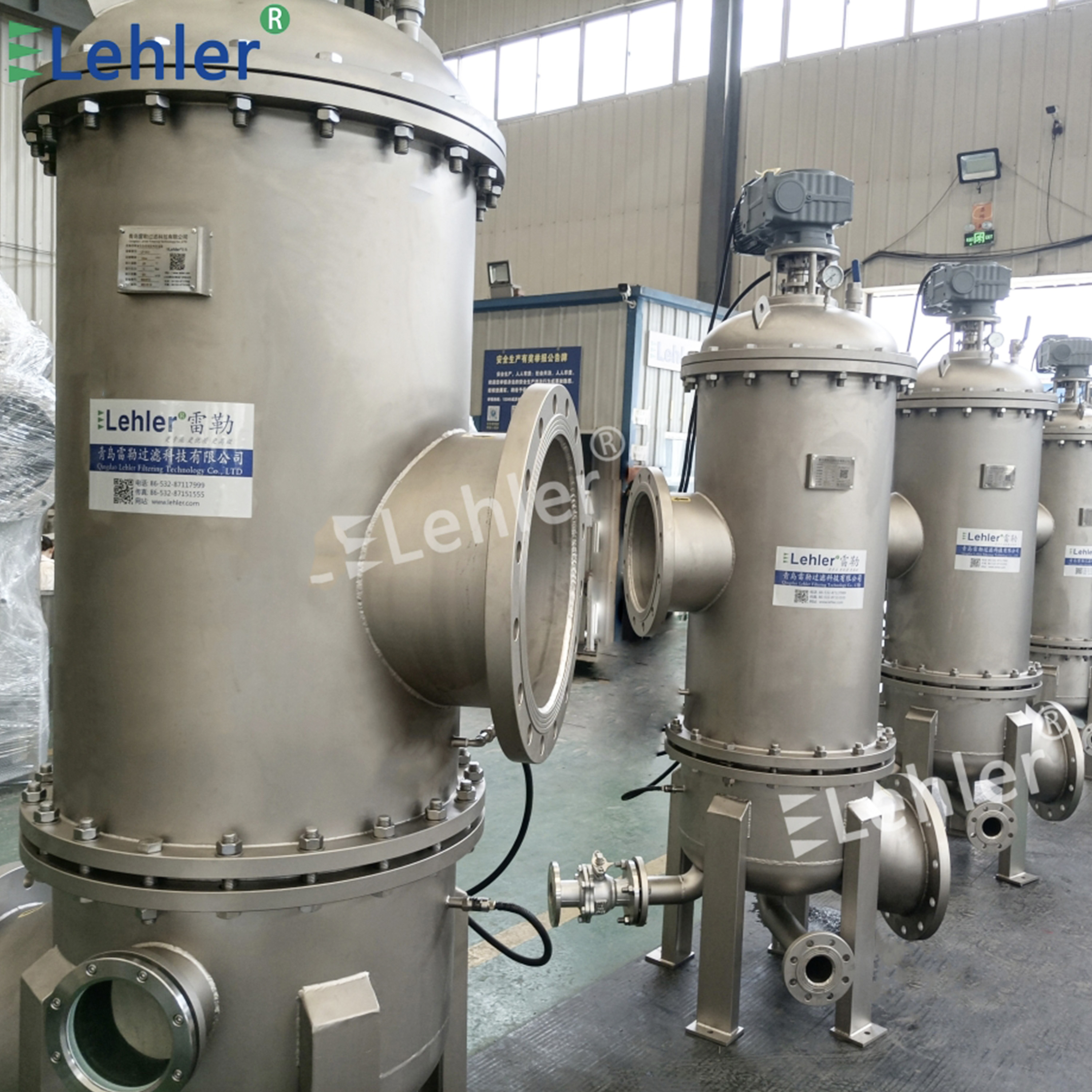

Automatic Back Flushing Filter

Lehler automatic back flushing filter (LFF series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated or manual operation.

EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification

Working principle

Automatic back flushing filter has many filter elements inside,which can be used for high flow rate and high impurity liquid filtertion process.It can remove solid partical from water or low viscosity liquid.
The special back flushing arm design can clean the filter element one by one avoid clogging.It increase the equipment running efficiency and extend the use life.

Technical Features &Advantages

High Flow Rate & High Impurity Liquid Filtration Process

--No disposable consumables:

Save filter media cost and environment cost

--High-precision slot opening:

Min. Slot 20 microns

--High automation degree:

Which can work on-line continuously,no manual cleaning frequently

Productive Process

Specification

Model	Equipment Diameter	Equipment Height	Thickness	Filter Area	Slot
LFF-D400	450mm	1500mm	6mm	0.8	Min. 0.02mm(20um)
LFF-D450	500mm	2000mm	6mm	0.9
LFF-D550	600mm	2500mm	6mm	1.0
LFF-D800	850mm	3000mm	6mm	2.0
LFF-D900	950mm	3500mm	6mm	2.5
LFF-D1200	1700mm	4000mm	6mm	3.0

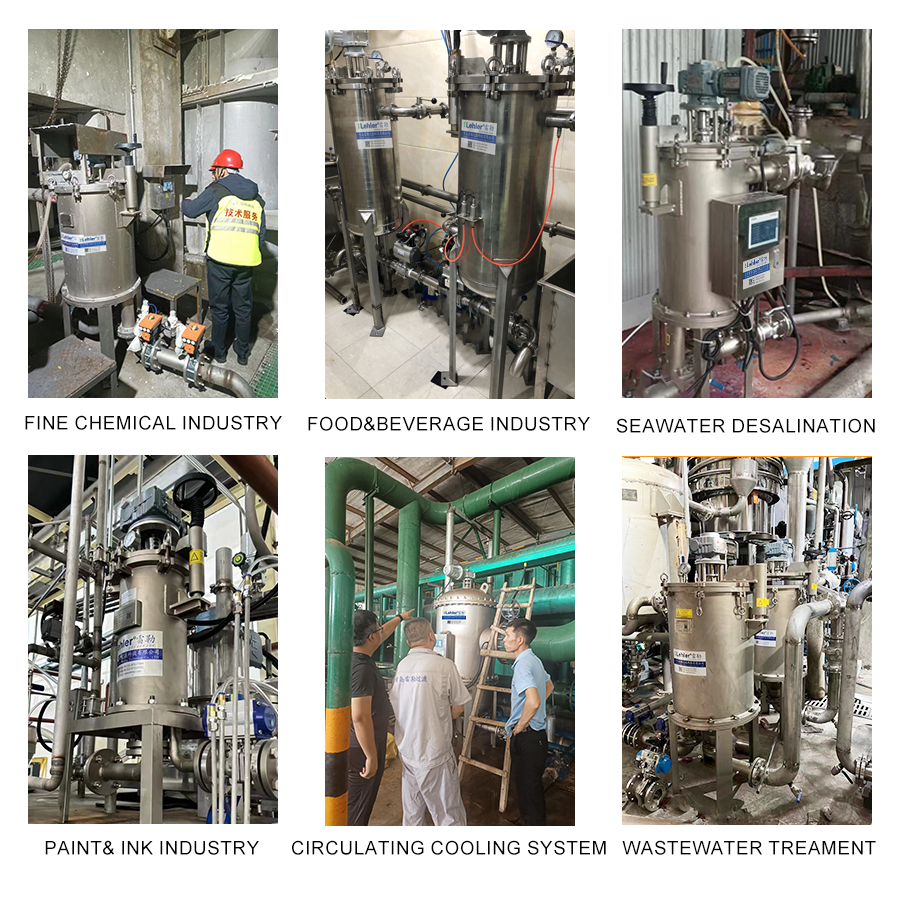

Application

Quality Control & Delivery

Company Profile

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification. Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.

FAQ

1.Q: How can I choose the most suitable filter equipment? ?

A: Please tell me the working condition include: filtration liquid, general viscosity, flow rate per hour, filtration rate in micron, operation pressure and operation temprature…
We will provide you most suitable model and dimension drawing.

2.Q: Can you offer video demonstrations illustrating the product's operation?

A: Absolutly, we can provide the working principle video, as well as the real photos.

3.Q: Do you facilitate live video consultations to inspect the factory in real-time?

A: :Surely. We can show our warehouse,
machining workshop, assembly workshop, inspection and packing workshop via video call. And we welcome you to visit our factory at site at any time.

4. Q: What are our advantages compared to others?

A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
Ⅱ. The source of raw materials is well-known manufacturers,ensuring the quality of steel.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,duplex stainless steel 2205,SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304.
Ⅳ.Complete machining equipment and strong processing capabilities, ensuring machining accuracy.

5.Q: What is the warranty period?

A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
