Industrial Automatic Self Cleaning Water Filters Strainers For Continuous Effective Filtration

Name: Industrial Automatic Self Cleaning Water Filters Strainers For Continuous Effective Filtration
Brand: Lehler
Price: 1 USD

Buy cheap Industrial Automatic Self Cleaning Water Filters Strainers For Continuous Effective Filtration product

Brand Name : Lehler

Model Number : LFA-D219

Place of Origin : QINGDAO

Delivery Time : 35

Packaging Details : polywood

Brush : Metal Brush

Service : OEM

Power Box : EX-proof

Element : Wedge Wire Element

Slot Opening : 150 Microns

Inlet/Outlet Connection : Flanged/Threaded

New Application : Sizing For Paper Mill

Surface Finish : Mirror Polish

Contact Now

Product Description

Industrial Automatic Self Cleaning Water Filters Strainers for Continuous and Effective Filtration

Lehler pneumatic scraping self-cleaning filter (LFA series filter) blends modern technology with simplicity to provide a versatile method of filtering your process fluids.

Industrial Automatic Self Cleaning Water Filters Strainers For Continuous Effective Filtration

Working principle

Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The aircylinder drives scraper blade up and down to remove the impurity continously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages

No disposable consumables:Save filter media cost and environment cost

Stainless steel structure:Variously materials, corrosion and rust prevention.

High-precision slot opening: Min. Slot 20 microns.

High automation degree:Which can work on-line continuously,no manual cleaning frequently.

Productive Process

Specification
Product Model	Equipment Diameter	Equipment Height	Thickness	Filter Area	Slot
LFA-D219	250mm	1000mm	3mm	0.3	Min. 0.02mm(20um)
LFA-D273	300mm	1450mm	4mm	0.5
LFA-D450	500mm	1600mm	6mm	0.9

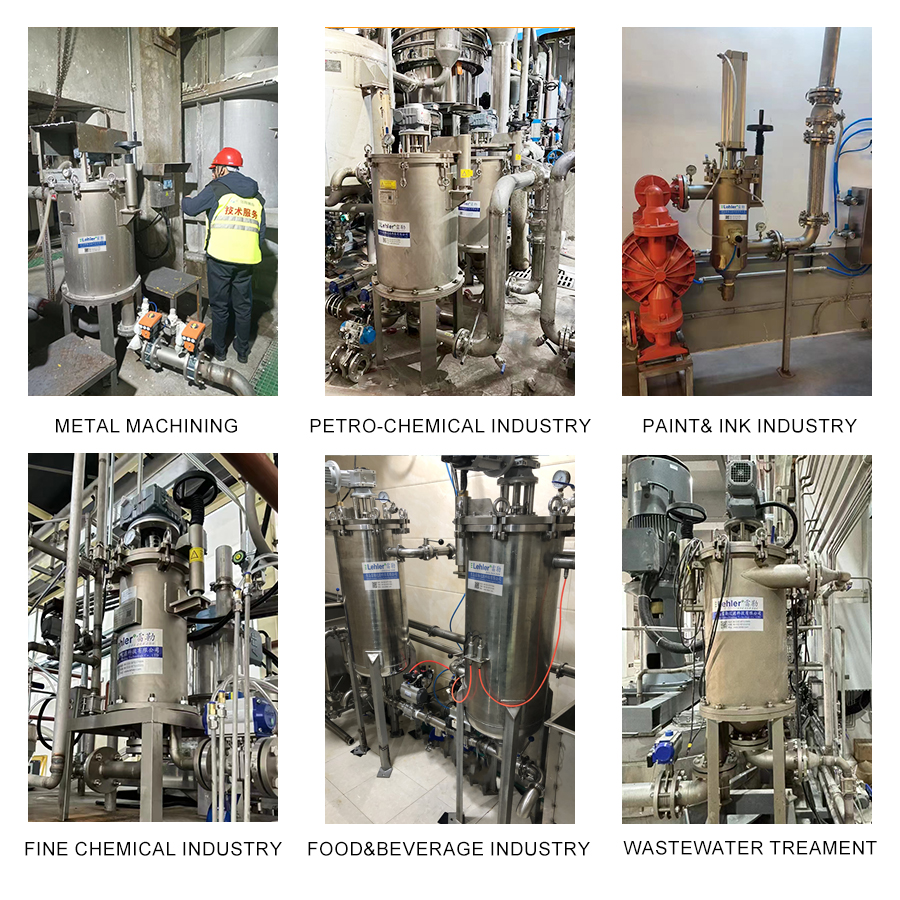

Application

Exhibition

Quality Control & Delivery

Plywood Case for Exporting Package

Certifications

Company Profile

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
